ASTM F436/F436M Type 1 Clipped Washers

ASTM F436/F436M Type 1 Clipped Washer

ASTM F436/F436M Type 1 clipped washers are specially designed carbon steel hardened washers with a flat edge (clipped side) to fit into tight spaces or near structural edges. Conforming to ASTM F436 standards, these washers ensure proper load distribution and prevent damage to adjoining surfaces while maintaining strong bolted connections. They are widely used in structural steel applications where clearance limitations exist.

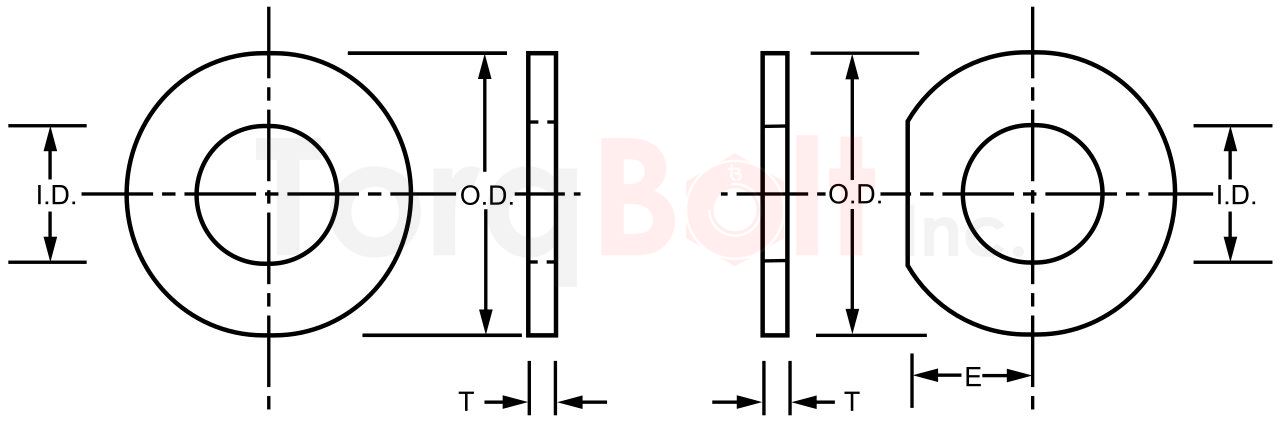

ASTM F436 Hardened Clipped Circular

Nominal Washer^D Size Inch	Circular Clipped	Clipped
¹/₄	0.281	0.313	0.593	0.657	0.219
⁵/₁₆	0.344	0.376	0.656	0.720	0.281
³/₈	0.406	0.438	0.781	0.845	0.344
⁷/₁₆	0.469	0.501	0.890	0.954	0.406
¹/₂	0.531	0.563	1.031	1.095	0.438
⁹/₁₆	0.625	0.657	1.156	1.220	0.500
⁵/₈	0.688	0.720	1.281	1.345	0.563
³/₄	0.813	0.845	1.436	1.500	0.656
⁷/₈	0.938	0.970	1.718	1.782	0.781
1	1.063	1.126	1.937	2.063	0.875
1¹/₈	1.188	1.251	2.187	2.313	1.000
1¹/₄	1.375	1.438	2.437	2.563	1.094
1³/₈	1.500	1.563	2.687	2.813	1.219
1¹/₂	1.625	1.688	2.937	3.063	1.313
1³/₄	1.875	1.938	3.312	3.438	1.531
2	2.125	2.188	3.687	3.813	1.750
2¹/₄	2.375	2.438	3.937	4.063	2.000
2¹/₂	2.625	2.688	4.437	4.563	2.188
2³/₄	2.875	2.938	4.937	5.063	2.406
3	3.125	3.188	5.437	5.563	2.625
3¹/₄	3.375	3.500	5.875	6.125	2.875
3¹/₂	3.625	3.750	6.375	6.625	3.063
3³/₄	3.875	4.000	6.875	7.125	3.313
4	4.125	4.250	7.375	7.625	3.500
(A) Clipped edge E shall be not closer than 7/8 of the bolt diameter from the center of the washer. (D) Nominal washer sizes are intended for use with fasteners of the same nominal thread size.

Nominal Washer^D Size Inch

Circular Clipped

Clipped

Inside Diameter (I.D)Inch

Outside Diameter (O.D.) Inch

min

max

min

max

Minimum Edge Distance (E)^A

¹/₄

0.281

0.313

0.593

0.657

0.219

⁵/₁₆

0.344

0.376

0.656

0.720

0.281

³/₈

0.406

0.438

0.781

0.845

0.344

⁷/₁₆

0.469

0.501

0.890

0.954

0.406

¹/₂

0.531

0.563

1.031

1.095

0.438

⁹/₁₆

0.625

0.657

1.156

1.220

0.500

⁵/₈

0.688

0.720

1.281

1.345

0.563

³/₄

0.813

0.845

1.436

1.500

0.656

⁷/₈

0.938

0.970

1.718

1.782

0.781

1.063

1.126

1.937

2.063

0.875

1¹/₈

1.188

1.251

2.187

2.313

1.000

1¹/₄

1.375

1.438

2.437

2.563

1.094

1³/₈

1.500

1.563

2.687

2.813

1.219

1¹/₂

1.625

1.688

2.937

3.063

1.313

1³/₄

1.875

1.938

3.312

3.438

1.531

2.125

2.188

3.687

3.813

1.750

2¹/₄

2.375

2.438

3.937

4.063

2.000

2¹/₂

2.625

2.688

4.437

4.563

2.188

2³/₄

2.875

2.938

4.937

5.063

2.406

3.125

3.188

5.437

5.563

2.625

3¹/₄

3.375

3.500

5.875

6.125

2.875

3¹/₂

3.625

3.750

6.375

6.625

3.063

3³/₄

3.875

4.000

6.875

7.125

3.313

4.125

4.250

7.375

7.625

3.500

(A) Clipped edge E shall be not closer than 7/8 of the bolt diameter from the center of the washer.
(D) Nominal washer sizes are intended for use with fasteners of the same nominal thread size.
